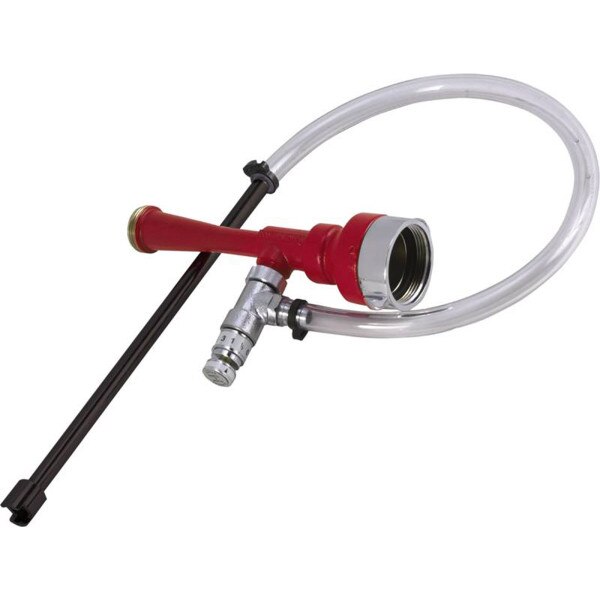

Elkhart 241 Inline-Style Foam Eductor with Chrome Trim
Details
Elkhart 241 Inline-Style Foam Eductor with Chrome Trim
Key Features:
- Simple, Efficient Venturi Design
- By-pass allows for water only at lower inlet pressures
- Positive setting metering valve proportioning settings of ½%, 1%, 3%, 6%
- 2.5″ or 1.5″ female swivel inlet x 1.5″ male outlet
- Rugged, corrosion resistant brass construction
- Red urethane enamel and chrome plated brass trim finish.
Specifications
241-60
- Rated to flow 60 gpm at 200 psi (230 LPM @ 14 BAR) inlet pressure
241-95
- Rated to flow 95 gpm at 200 psi (360 LPM @ 14 BAR) inlet pressure
241-125
- Rated to flow 125 gpm at 200 psi (475 LPM @ 14 BAR) inlet pressure
241-150
- Rated to flow 150 gpm at 200 psi (570 LPM @ 14 BAR) inlet pressure
241-250
- Rated to flow 250 gpm at 200 psi (750 LPM @ 14 BAR) inlet pressure
- Available with 2.5″ inlet only
241-30
- Rated to flow 30 gpm at 200 psi (115 LPM @ 14 BAR) inlet pressure
- Infinite setting metering valve from 0% to 6%
- 1.0″ -OR- 1.5″ female swivel inlet x 1.0″ male outlet
- Red urethane enamel and chrome plated finish trim
