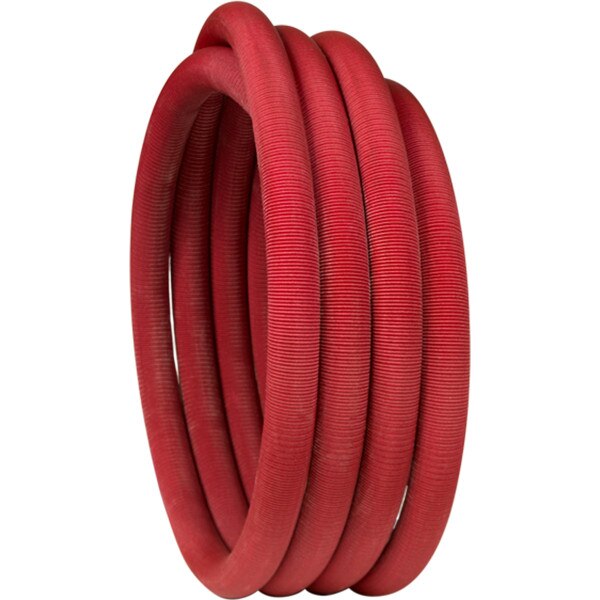

Key Fire Hose REEL-LITE 1" Diameter Fire Hose with Expansion Ring Couplings
Details
Key Fire Hose REEL-LITE 1" Diameter Fire Hose with Expansion Ring Couplings
**If you do not see a spec listed, please contact us to order**
The industry’s most durable and lightweight, high pressure booster hose featuring a highly abrasion and heat resistant single jacket polyester cover. Uniquely constructed using an interior helical reinforcement offering unmatched kink resistance that maintains hose shape and performance.
Designed for use with most low-profile reels and skid units and available in lengths up to 200'.
Features:
- Lightweight, 1" diameter attack hose for industrial, municipal and forestry market applications
- The most durable booster hose on the market
- Kink resistant, pliable with an abrasion resistant cover
- Normal service conditions in temperature range from -30 °F to 112 °F
- Heat resistant up to 500 °F
- Made in U.S.A.
- UL-19 abrasion test of 1500 cycles minimum
- 1-year warranty against defects in material and workmanship
Scope:
A multi-purpose, lightweight, rigid 1" diameter attack hose that meets the needs of industrial, municipal and forestry market applications. This uniquely constructed product features an all polyester cover for heat and abrasion resistance, along with a special helical interior reinforcement to retain its rigid shape. This thin-walled polyurethane lined hose is the most durable lightweight booster hose on the market.
Construction:
Circular woven, single jacket, combined with a helical interior reinforcement, and a polyester cover. Extruded polyurethane liner for age, ozone and chemical resistance. Standard lengths available up to 200' long.
Abrasion:
Hose assemblies come standard with polymer impregnation that provides additional abrasion resistance. Standard colors are red and yellow. Color shall be pure and even in each hose.
Characteristics:
- Normal service conditions in temperature range from -30 °F to 112 °F
- Heat resistant up to 500 °F
- UL-19 abrasion test of 1500 cycles minimum
- Minimum service pressure of 400 psi
- Acceptance test to 800 psi
- Minimum burst pressure of 1200 psi
- Pliable and abrasion resistant cover
- Lightweight and kink resistant
- 1 year warranty against defects in material and workmanship
Couplings:
Field replaceable coupling with a one inch NH thread standard. Aluminum internal expansion ring coupling available upon request.
Specifications
| Diameter | Part No. | Service Test | Proof Test | Burst Test | Bowl Size | Weight 50' Coupled |
| 1" | RB10-800 | 400 psi | 800 psi | 1200 psi | 15⁄16" | 10 lbs |
- Uniquely constructed with an all polyester single jacket cover for heat and abrasion resistance, along with a special helical interior reinforcement to retain its rigid shape. All over a thin-walled, extruded polyurethane for age, ozone and chemical resistance.
- Reel Lite is treated with a special “Key-Lok” polyurethane based polymer impregnation for enhanced color and added abrasion resistance.
- Reel Lite comes standard with field replaceable coupling with a one inch NH thread standard. Aluminum internal expansion ring coupling available upon request.
- The minimum burst test pressure, when tested in accordance to NFPA 1961, on Reel Lite hose shall be 1200 psi / 82 bar. Acceptance test to 800 psi / 55 bar. Minimum service pressure of 400 psi / 27 bar.
Warranty Information:
Reel Lite hose has a warranty of 1 year against defects in material and workmanship.
