Level IV Stand Alone Single Curve Bullet Resistant Plate
Details
Level IV Stand Alone Single Curve Bullet Resistant Plate
This Level IV Stand Alone single curve plate offers armor piercing protection. NIJ Certified 0101.06 and (RST) Rifle Special Threat Validated. Constructed of Ceramic strike face with composite backing, with exterior of durable 1000D Cordura® textured nylon. Warranty of 10 years on ballistic material with 1 year on exterior cover material and workmanship.
Options Available:

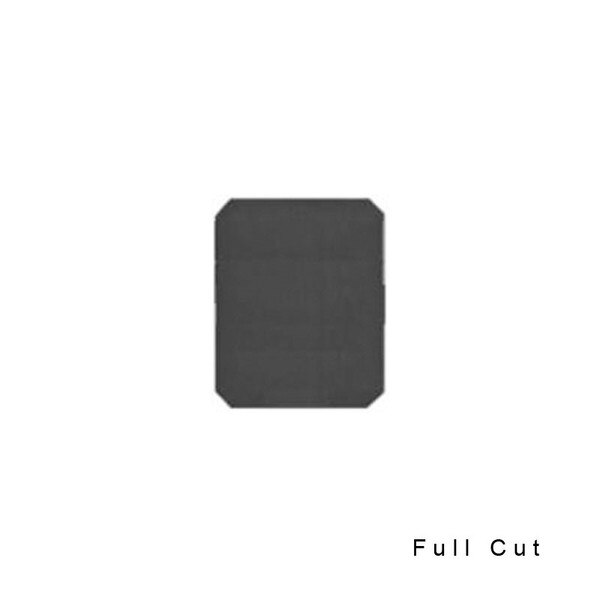

- 6" x 6" Full Cut - Single Curve - 2.5 lbs
- 8" x 10" Full Cut - Single Curve - 5.7 lbs

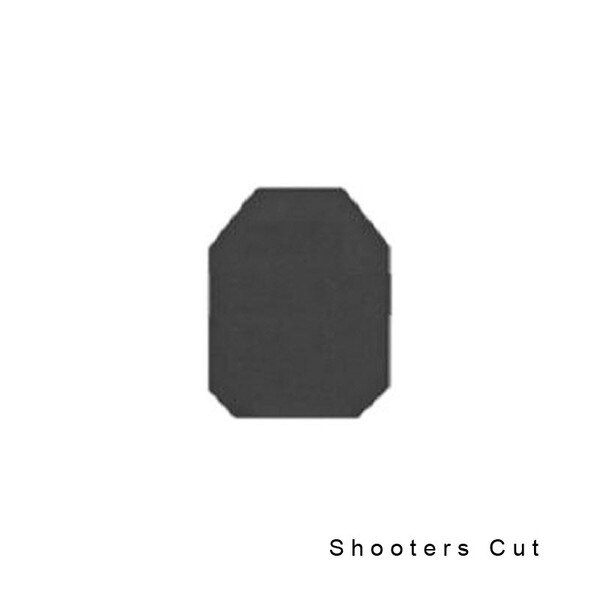

- 8" x 10" Shooters Cut - Single Curve - 5.6 lbs
- 10" x 12" Full Cut - Single Curve - 8.5 lbs
- 10" x 12" Shooters Cut - Single Curve - 7.2 lbs
Specifications
| Size | Cut | Thinness (in/mm) | Weight (lbs/kg) |
|---|---|---|---|
| 11.80″ x 9.70″ / 300 x 246 | Shooters | 1.15/29 | 7.1/3.22 |
| 11.80″ x 9.70″ / 300 x 246 | Full | 1.15/29 | 7.9/3.6 |
| Weapon Type | Ammunition | Striking Velocity (fps ± 30) | Striking Velocity (mms ± 9) |
|---|---|---|---|
| Rile M-1 | 30.06 AP M2* | 2880 | 878 |
| Rifle FN FAL | 7.62 x 51mm-M80 Ball | 2780 | 847 |
| Rifle FN FAL | 7.62 x 51mm-M61 AP* | 2780 | 847 |
| Rifle M-16/AR-15 | 5.56 x 45mm-M193/M855/SS109 | 3180 | 969 |
| Rifle SVD, Dragunov M.G.-PKM | 7.62x54R-LPS | 2850 | 869 |
| Rifle SVD, Dragunov M.G.-PKM | 7.62 x 54R-8-32 API* | 2850 | 869 |
| Rifle AK-47, M, SKS | 7.62 x 39mm-API* | 2400 | 732 |
| Rifle AK-47, M, SKS | 7.62 x 39mm-Ball/Steel Core | 2400 | 732 |
