NOAQ Mobile Air Filled Flood Tube Wall

SKU FDG-TW50
(0) No Reviews yet
$3,501.99 to $8,134.99

Details

NOAQ Mobile Air Filled Flood Tube Wall

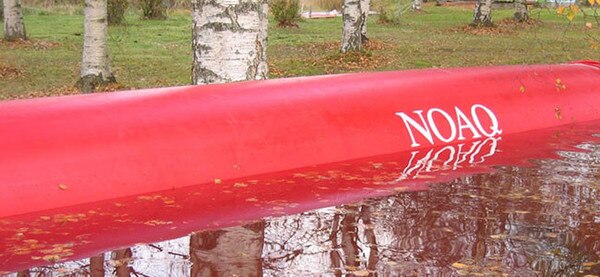

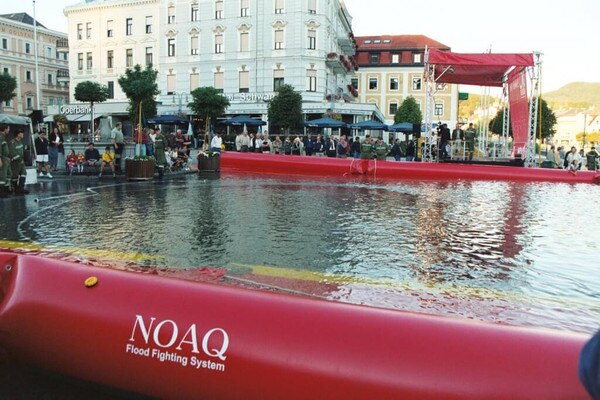

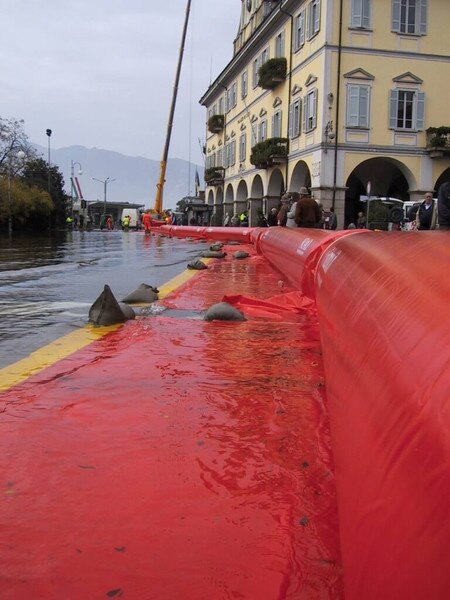

The NOAQ Tube Wall is an air-filled flood barrier which uses the weight of the water and friction to anchor itself.

It consists of a number of air inflated sections (tubes) that are interconnected by ordinary zip ties to form a continuous protective barrier.

Each tube is furnished with a skirt which lies on the ground on the flood side. As flood water rises on top of the skirt, the skirt is squeezed against the ground whereby the friction against the ground anchors the skirt and the entire tube wall. The higher water levels, the better anchoring pressure, and the tube wall remains stable even if the water rises to the full height of the unit.

When floodwaters have reduced, tube wall units can be deflated and rolled up for later use with no residual water or soil to contend with.

Specifications

Sizing:
  • Small: 5.58' W x 1.64' H
  • Medium: 7.87' W x 2.46' H
  • Large: 10.5' W x 3.28' H

Features:
  • Free standing barrier
  • Air filled and water anchored
  • Lightweight
  • Protects to the full height of the unit
  • Creates curves and corners
  • Easy recovery and cleaning
  • Stackable for transport and storage

Small Specs:
  • Tube: 19.68"
  • Diameter: 50cm
  • Max Water: 19.68"
  • Level: 50cm
  • Length: 32.8'
  • Width: 5' 7"
  • Weight: 2.35 lb/ft
  • Inflation Time: 2min
  • Material: Reinforced PVC 680 g/m
  • Temp: -22F - 158F

Medium Specs:
  • Tube: 29.53"
  • Diameter: 75cm
  • Max Water: 29.53"
  • Level: 75cm
  • Length: 32.8'
  • Width: 7' 10"
  • Weight: 3.36 lb/ft
  • Inflation Time: 3min
  • Material: Reinforced PVC 680 g/m
  • Temp: -22F - 158F

Large Specs:
  • Tube: 39.37"
  • Diameter: 100cm
  • Max Water: 39.37"
  • Level: 100cm
  • Length: 32.8'
  • Width: 10' 6"
  • Weight: 4.70 lb/ft
  • Material: Reinforced PVC 680 g/m
  • Temp: -22F - 158F
