Solberg VERSAGARD AS-100 3x3 Fluorine Free Foam Concentrate
Details

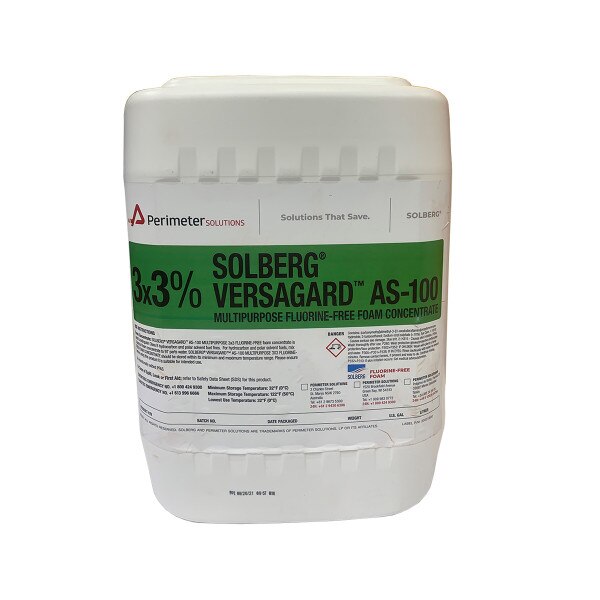

Solberg VERSAGARD AS-100 3x3 Fluorine Free Foam Concentrate
SOLBERG® VERSAGARD™ AS-100 multipurpose 3x3 fluorine-free foam concentrate is a state-of-the-art AR fluorine-free pseudoplastic foam technology. Non-persistent, siloxane-free, with no intentionally added PFAS chemicals, SOLBERG VERSAGARD AS-100 is designed for extinguishing and securing both Class B (hydrocarbon fuel and polar solvent fuel) and deep-seated Class A fires. SOLBERG VERSAGARD AS-100 is a combination of hydrocarbon surfactants and additives producing excellent foam expansion, product stability, vapour sealing, extinguishment and burnback properties for both shallow and fuel in-depth fires, using fresh, sea or brackish water. This fluorine-free concentrate has been engineered to produce a stable and long-draining foam blanket, whilst ensuring a concentrate with no significant viscosity change in presence of water and with improved storage, handling, proportioning and long-term stability.
Applications:
SOLBERG VERSAGARD AS-100 is designed to generate stable foams with high fluidity and slow drainage. This novel technology allows SOLBERG VERSAGARD to perform similarly to fluorinated products. It may be used with low-expansion foam equipment (nozzles and monitors) and medium & high-expansion foam discharge devices to fight fires involving Class B hydrocarbon and polar solvent fuel fires. It is fully compatible and easily proportioned with standard firefighting equipment, including in-line inductors, self-inducting nozzles, fire truck pumps, bladder tanks, pump skids, balanced pressure systems and more.
In addition to its excellent foamability and bubble stability, SOLBERG VERSAGARD AS-100 has excellent wetting ability making it an effective tool for the extinguishment of Class A fuel fires.
Specifications
Usage Rate:
- The proportioning rate is 3% for both hydrocarbons and polar solvents. It is used at 1% on Class A fuel fires.
Typical Properties:
- Specific Gravity, g/cm3: 1.000 - 1.040
- pH at 20°C: 7.0 - 8.0
- Viscosity, mPa.s/cPs at 375s-1* at 20ºC: 105
- Viscosity, mPa.s/cPs (LV-4 Spindle at 30 rpm),† 20ºC 2900-3500
- Freezing Point: -4ºC
- Lowest Temperature for Use: 0ºC
Foam Properties:
- Dilution Rate 3%
- Surface tens. at 20ºC, mN/m (Demineralised water): 21
- Interfacial tens. with cyclohexane at 20ºC, mN/m: 5
- Low Expansion Foam (UNI-86)
- Foam Expansion Index >7
Certifications:
SOLBERG VERSAGARD AS-100 has been the subject of multiple large-scale fire testing programs. Results include:
- Achieved the maximum rating and certified in European Standard EN-1568:2018 part 3 & 4 on all fuels with fresh and sea water – IA/IA - IA/IA
- Passed and certified to European Standard EN-1568:2018 part 1 & 2 – for use with medium- and high-expansion foam discharge devices
- UL 162 Listed
- International Maritime Organization certification MSC.1/Circ. 1312
- LASTFIRE batch-certified as GOOD/GOOD/GOOD with 3 nozzles (semi, asp, system)
- Tested and certified to ICAO Level B – high performance on aviation fuels with both fresh and sea water
