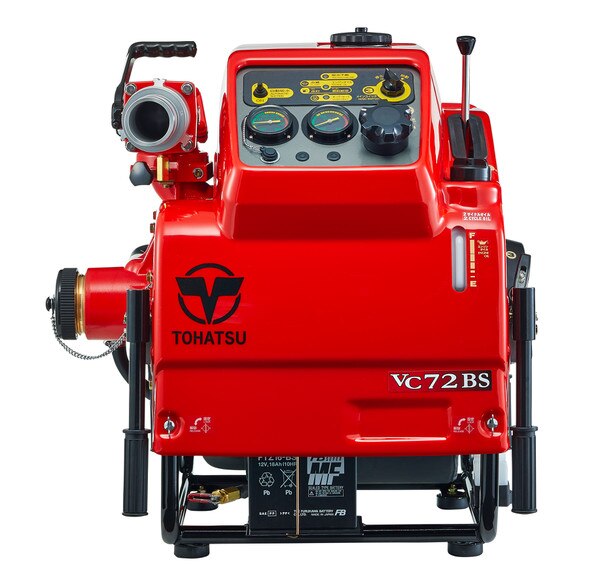

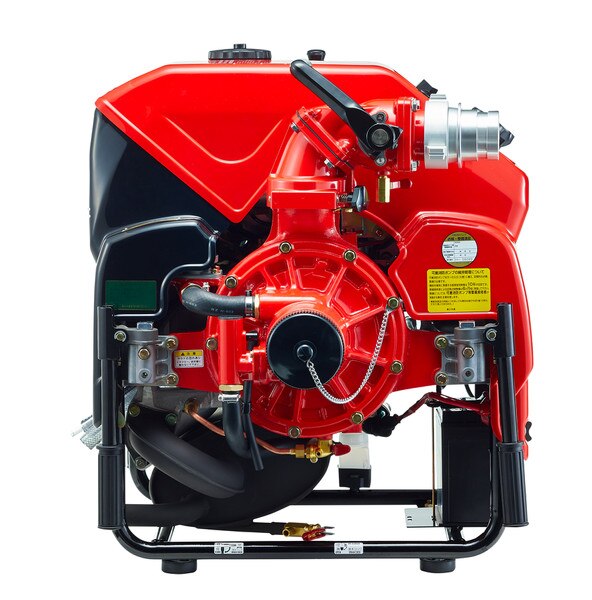

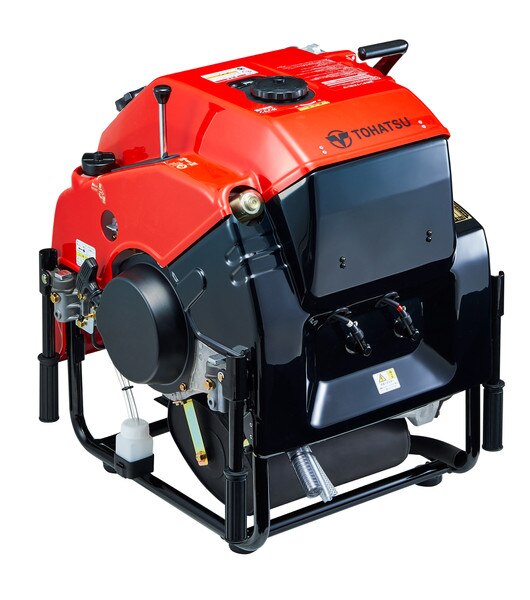

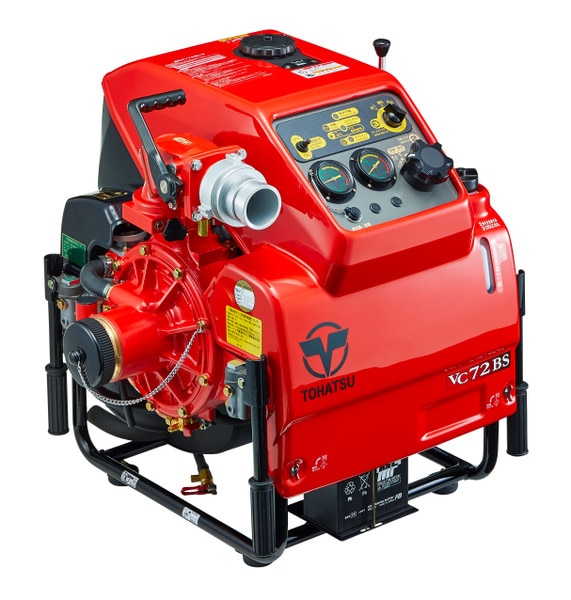

Tohatsu VC72BS 2-Stroke Portable Fire Pump
Details
Tohatsu VC72BS 2-Stroke Portable Fire Pump
This portable fire pump features an engine and castings made of anti-corrosive aluminum-alloy to reduce weight and prolong working life.
High Pump Performance
Both engine and pump are designed and developed specifically for fire pumps by Tohatsu, ensuring higher pump performance for its class.
Priming
Quick priming is provided by operating Rotary Vane Vaccum Pump. Prime 3 meters in 6 seconds.
Centralized Control
All gauges, throttle dial, control switches, and other warning lamps are grouped on the control panel for easy operation.
Engine Overheat Protection Sensor
Overheat protection is provided on this model to safeguard the engine from cooling water loss, and to protect engine when water is not discharging. This device stops the engine automatically when engine temperature reaches 176 F. Reset switch is provided to release the sensor after it stops the engine.
Specifications
Engine:
- Type: 2-Stroke
- Cylinders: 2
- Cooling System: Suction Water Cooled
- Bore x Stroke: 2.99" x 2.68"
- Piston Displacement: 37.6 cu in.
- Output: 30 kW
- Fuel Type: Unleaded gasoline (Min. 87 Octane)
- Fuel Tank Capacity: 4.76 gal
- Fuel Consumption: 3.43 gal / Hr.
- Fuel System: Single Carburetor with auto choke
- Oil Tank Capacity: 18 Liters
Suction:
- Starting: Electric and manual
- Suction System: 4 Blade Rotary-vane vaccum pump (Oilless-type)
- Priming System: Manual
Pump:
- Pump Type: Single suction, Single Stage centrifugal pump
- Suction Thread & Dia.: JIS 2.5"
- Discharge Thread & Dia.: JIS 2.5"
- Discharge Number: Single
- Discharge Valve: Flat
Shipping Information:
- Weight: 187.39 lbs.
- Dimensions: 28" x 24" x 29"
