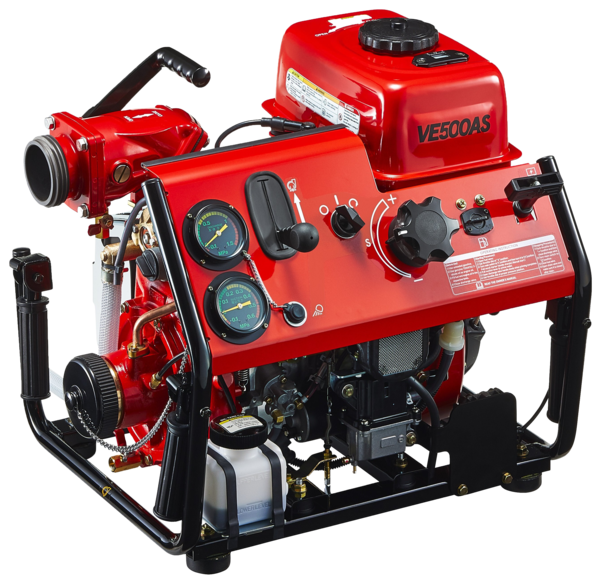

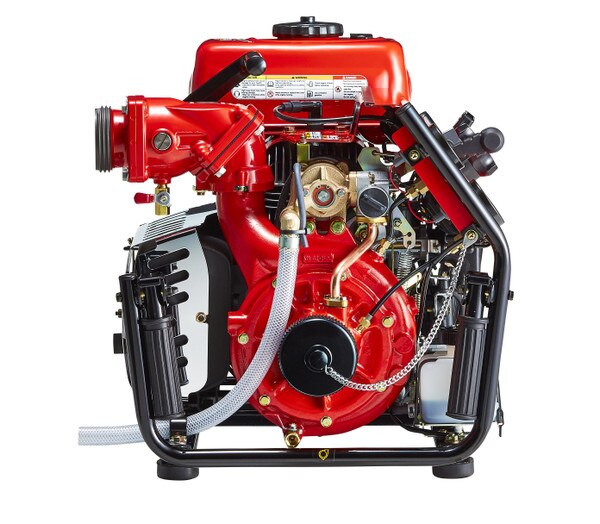

Tohatsu VE500AS 2-Stroke Portable Fire Pump

SKU TACP-VE500AS
(0) No Reviews yet
$6,767.99

Details

Tohatsu VE500AS 2-Stroke Portable Fire Pump

The VE500AS portable fire pump is small and compact with industry leading features.

Advanced Engine Technology for any Tough Environment

Newly adopted Electronic Fuel Injection System brings many benefits to an operator. Smoother and consistent transient throttle response, easier starting in cold conditions and highlands area, more accurate adjustment to account for extremes of ambient temperatures and changes in air pressure, more stable idling and no engine stalling, and no carburetor related issues.

Special Surface Treatment to Deliver a Robust and Durable Equipment

The Pump unit installed on this model are applied with special surface treatment. This treatment contributes to extending the purpose of use and prolonging  the working life. It allows you to use this pump not only for fire fighting purposes but also for drainage purposes in a flooded area.

Small and Compact Design Philosophy

The dry weight of this model is less than 110 lbs. and it's the lightest weight in its class. In order to improve usability, we install 4 storable carry handles on the frame. They allow you to carry anywhere.


Specifications

Engine:

  • Type: 2 Stroke
  • Cylinders: 1
  • Cooling System: Air Cooled
  • Bore x Stroke: 2.6" x 2.28"
  • Piston Displacement: 12 cu in.
  • Output: 8.6 kW
  • Fuel Type: Unleaded gasoline (Min. 87 Octane)
  • Fuel Tank Capacity: 1.57 gal
  • Fuel Consumption: 1.42 gal / Hr.
  • Fuel System: Electronic Fuel Injection
  • Oil Tank Capacity: 0.13 gal


Suction:

  • Starting: Electric and Manual
  • Suction System: 4 Blade Rotary-vane vacuum pump (Oilless-type)
  • Priming System: Manual


Pump:

  • Pump Type: High Pressure turbine pump
  • Suction Thread: JIS 2.5"
  • Discharge Thread: JIS 2.5"
  • Discharge Number: Single
  • Discharge Valve: Ball


Shipping Information:

  • Weight: 108 lbs.
  • Dimensions: 22" x 18" x 21"
