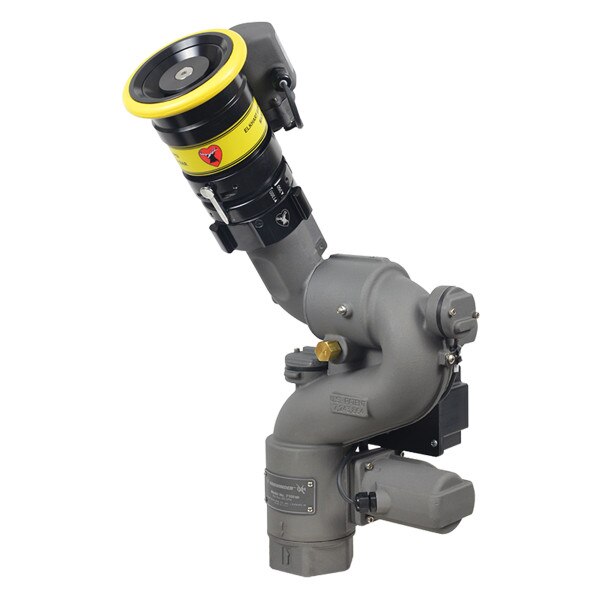

Elkhart 7100X2 Sidewinder EXM2 Monitor

Elkhart 7100X2 Sidewinder EXM2 Monitor

7100X2 Series monitors feature built-in Wi-Fi for simple programming and setup. The EXM2™ controls, both wired and wireless, provide improved performance and operator control. Specifically designed for rugged applications, the Sidewinder® EXM2 monitors provide flow rates up to 700 gpm (2800 LPM). The EXM2 platform continues to incorporate heavy-duty swivel joints and thrust rods for unprecedented durability.

Features:

• Rated for 700 gpm (2800 LPM)
• 500 psi (34.5 BAR) maximum pressure rating (7100SDX2)
• 600 psi (42 BAR) maximum pressure rating (7100HDX2)
• Teflon impregnated, hard coated aluminum finish
• SD = Standard-duty motors
• HD = Heavy-duty, high torque motors for continuous use applications
• 2.5" female NPT inlet x 2.5" male NH outlet

Range:

• Vertical -45° to +90° (135°)
• Horizontal L175° to R175° (350°)
