Petzl JAG SYSTEM Lightweight Hauling System
Details

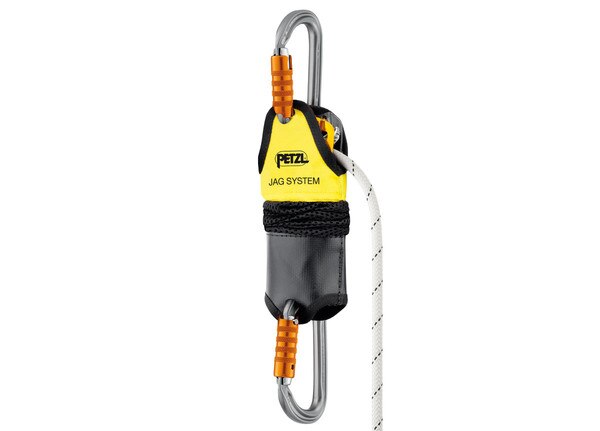

JAG SYSTEM Lightweight Hauling System
The Petzl JAG SYSTEM Lightweight Hauling System kit allows pickoffs, by making a releasable anchor, or tensioning a system, thanks to its 4:1 mechanical advantage and excellent efficiency (sheaves with sealed ball bearings). This collapsed kit is also highly compact, which allows use when the distance to the anchor is very short.
The JAG Lightweight Hauling System is quick and easy to deploy, thanks to the flexible cover that prevents any risk of tangling. The haul end is also color-coded for instant identification. The Petzl JAG SYSTEM Lightweight Hauling System is available at All Hands Fire in three lengths: 1, 2 and 5 meters.
Features:
- Allows pickoffs, making a releasable anchor, tensioning a system...
- Can be coupled with an I'D descender to make a reversible rescue kit to pick off and evacuate a victim
- 4:1 mechanical advantage allows user effort to be divided by 4
- Excellent efficiency due to sheaves mounted on sealed ball bearings

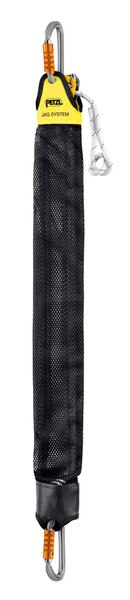

- Deployment possible even when the distance to the anchor is very short, thanks to the extreme compactness of the collapsed system
- 8mm lightweight rope The mechanical advantage guarantees a good grip.
- Quick and easy to deploy: kit always ready to use, thanks to the flexible cover that prevents any risk of tangling
- Haul end immediately identifiable, thanks to the yellow color of the end of the cover

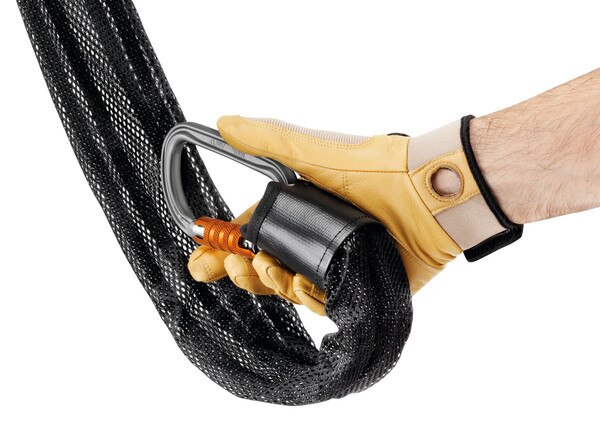

- The ends of the cover hold the connectors in position to facilitate clipping
- Comes with two Am'D TRIACT-LOCK auto-locking carabiners
- Available in three lengths: 1, 2 and 5 m
- JAG and JAG TRAXION pulleys also available separately for making long haul systems (e.g. confined space descent/ascent system)
Specifications
- Material(s): Aluminum, Nylon, Polyurethane
- Rope diameter: 8mm
- Certification(s): EAC
- Sheave type: Sealed Ball Bearings
- Working load: 6kN
- Breaking strength: 16kN
- Efficiency: 91%
| References | P044AA00 | P044AA01 | P044AA02 |
|---|---|---|---|
| Deployed length | 1 m | 2 m | 5 m |
| Collapsed length | 0,32 m | 0,34 m | 0,40 m |
| Weight | 610 g | 805 g | 1460 g |
