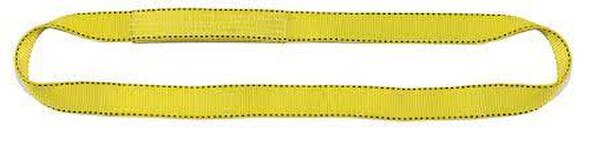

Liftex Endless Flat Web Sling - CORE - Type V - Single Ply
Details
Liftex Endless Flat Web Sling - CORE - Type V - Single Ply
Endless web slings are extremely versatile lifting and rigging slings as the design allows for rotation of bearing points, avoiding one constant bearing point, and thereby increasing useful life. They are suitable for use with all three hitches: Vertical, Choker and Basket.
"EN" web slings are a continuous loop formed by joining ends of the webbing together with a load-bearing splice. Versatile and flexible, this lifting sling offers advantages that standard eye and eye slings do not have. Endless web slings offer dynamic bearing points, more hitch configurations, and higher lifting capacities per web width compared to standard "EE" lifting slings.
Capacity Breakdown:
Endless web slings are extremely versatile lifting and rigging slings as the design allows for rotation of bearing points, avoiding one constant bearing point, and thereby increasing useful life. They are suitable for use with all three hitches: Vertical, Choker and Basket.
"EN" web slings are a continuous loop formed by joining ends of the webbing together with a load-bearing splice. Versatile and flexible, this lifting sling offers advantages that standard eye and eye slings do not have. Endless web slings offer dynamic bearing points, more hitch configurations, and higher lifting capacities per web width compared to standard "EE" lifting slings.

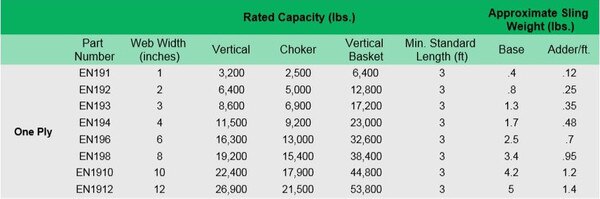

Capacity Breakdown:
- 1": Vertical - 3,200 lbs., Choker - 2,500 lbs., Vertical Basket - 6,400 lbs.
- 2": Vertical - 6,400 lbs., Choker - 5,000 lbs., Vertical Basket - 12,800 lbs.
- 3": Vertical - 8,600 lbs., Choker - 6,900 lbs., Vertical Basket - 17,200 lbs.
- 4": Vertical - 11,500 lbs., Choker - 9,200 lbs., Vertical Basket - 23,000 lbs.
