QuadraFog Nozzle 1" NH DQ40 Series Selectable Gallonage

SKU TFT-DQ40
(0) No Reviews yet
$660.00 to $1,040.00

Details

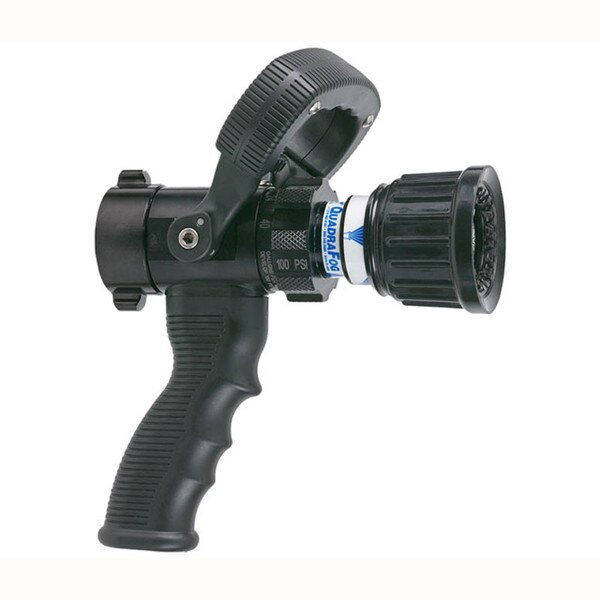

QuadraFog Nozzle 1" NH DQ40 Series Selectable Gallonage

Selectable gallonage nozzle with four flow settings of 5, 10, 24, and 40 gpm @ 100 psi (40-100-150-230 l/min @ 7 bar). All lightweight materials, hardcoat anodized aluminum. Flush without shutting down. Quick-change rear valve seat and stainless steel shut-off ball. Pistol grip is mounted below the valve. Rocker lug 1" NH swivel is standard.


Specifications

  • Flow Control Method: Selectable Flow at a pressure (constant gallonage, flow does not change with pattern)
  • Flow Rate: 5 & 10 & 24 & 40 gpm (20 & 40 & 100 & 150 l/min)
  • Coupling Size (Nozzles): 1.0 inch (25mm)
  • Coupling Style (Nozzles): Rocker
  • Coupling Swiveling/Rigid (Nozzles): Swivel (non-full time, no swivel after tightening)
  • Pressure: 100 psi (7bar)
  • Nozzle Body Style: Tip or Nozzle with Shutoff or Nozzle with shutoff and pistol grip
  • Valve Design: Ball Valve (Stainless)
  • Valve Actuation Method: Horseshoe (Injection Molded Nylon w/ Colored Handle)
  • Fog Pattern Method: cut metal teeth (fixed)
  • Nozzle Bumper Material: Rubber - press fit
  • Certifications: N/A
  • Foam Expansion Performance: N/A
