Wagonway Magnus WW-800M Solar Towers

SKU WAG-WW-800M
(0) No Reviews yet
$40,067.99

Details

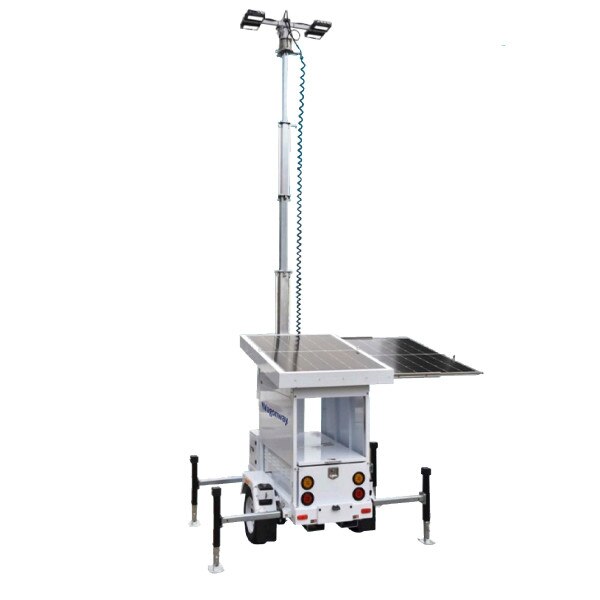

Wagonway Magnus WW-800M Solar Tower

The Wagonway Magnus WW-800M solar tower is a game-changing solar light tower designed for efficient, eco-friendly lighting solutions. Perfect for moderate to heavy lighting needs, it eliminates the noise, emissions, and fuel costs of traditional diesel- or gas-powered towers. Powered entirely by renewable solar energy, this portable tower delivers bright, reliable illumination while reducing your carbon footprint. Ideal for outdoor events, construction sites, and more, the Wagonway Magnus WW-800M solar tower combines power and sustainability in one innovative package.

Features:

  • Zero Emission with no fuel and without incurring any electricity bills
  • Low maintenance with no engine, alternator, or fuel
  • Dusk to Dawn functions via photocell
  • Adjustable-tilt solar array for optimal position in catching the sun rays
  • Automatic and manual operating modes including power saving modes
  • Includes the option of being rechargeable with standard 120V charging
  • Dimmable LED lights can be individually aimed at different angles
  • Electric mast with Operating Safety System
  • Sealed, maintenance-free batteries
  • 200 Lumen/W, up to 90,000 Lumens


Product Applications:

Construction Sites: Our silent, zero-emission, off-grid solar light tower is revolutionizing the construction industry. It illuminates your workplace and provides security with no fuel

Emergency Disaster Relief: Whenever disasters occur, the ability to quickly source emergency light is critical to save lives and minimize damage

Traffic: These high-intensity, vehicle-mounted telescoping light towers provide the illumination needed to complete nighttime rescue, disaster, or investigative operations safely

Mining: Light towers are a vital ‘backbone’ piece of equipment in mining scenarios

Film & Television Industry: Portable & Mobile Solar Light Tower delivers zero-emission lighting with quiet operation perfect for film and television locations

Events: It has never been easier to stage an event than with the help of light towers to provide security and illumination

Utilities: Utility organizations can use Solar Light Towers for multiple purposes with no fuel


Contact us for customization and accessories.

Specifications

  • Solar Panel: 2 x 435 W
  • Panel Lifting: 10° - 45° Manual Lifting
  • GEL Battery: 4 x 200 Ah DC 12 V
  • Battery Capacity: 9,600 Wh 80% DoC
  • System Voltage: DC 24 V
  • Battery Charger: Yes
  • LED Lamp: 4 x 100 W, 60,000 Lms
  • Lighting Area (5 Lux): 1,481 m²
  • Rotation: 350° Electric
  • Tilt: 90° Electric
  • Controller: 40 MPPT
  • Mast & Height: 7 Sections 7m
  • Mast Lifting: Manual Winch
  • Trailer Standard: US
  • Hitch: 2" Ball / 3" Ring
  • Brake: Electric
  • Axle: Single
  • Tire: 14"
  • Outriggers: Optional
  • Lifting Ring: 4x
  • Forklift Holes: 4x
  • Working Temp: -25.6°F to 140°F (-35°C - 60°C)
  • Charging Time: 9.3 hours
  • Running Time: 19.2 hours
  • Dimensions (in.): 145.6 x 84.64 x 108.26
  • Weight (lbs.): 2,200
