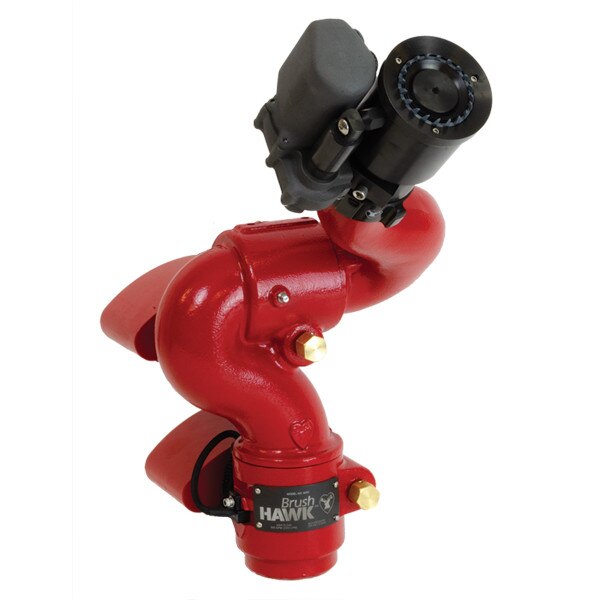

Elkhart 8495-01 BrushHawk Monitor

Elkhart 8495-01 BrushHawk Monitor

With a small swing radius and low stow height, the BrushHawk™ is the most compact monitor in its class. It’s perfect for limited bumper space on brush and wildland trucks while also improving field of vision. Utilizing CANbus control, the BrushHawk comes with a proportional joystick controller that provides monitor controls for up/down/left/right and nozzle fog/stream controls. The joystick also includes on/off and trigger control for the optional valve kit. No intermediate junction box is required between the joystick and monitor, streamlining installation and space requirements.

Features:

• Rated for 500 gpm (1900 LPM)
• 200 psi (14 BAR) maximum pressure rating
• 1.5″ male outlet
• Durable, lightweight aluminum construction
• Red urethane finish

Travel Range:

• 350° Horizontal L175° to R175° and 120° Vertical -30° to +90°
• 180° Horizontal L90° to R90° and 120° Vertical -30° to +90°
• 180° Horizontal L90° to R90° and 90° Vertical -45° to +45°

Options:

• 1.5" female NPT inlet x 1.5" male NH outlet
• 2.0" female NPT inlet x 2.0" male NH outlet
• Specify quick connect on outlet
