Achilles SG Sport Utility Series Inflatable Boats
Details
Achilles SG Sport Utility Series Inflatable Boats

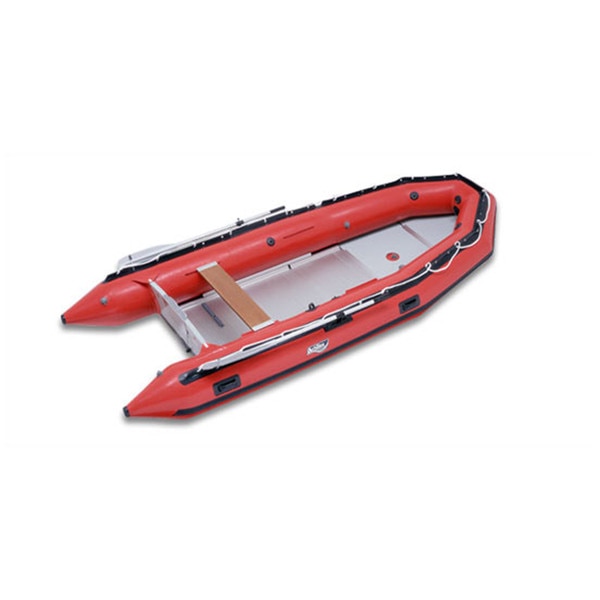

These "top-of-the-line" models continue to set the standard for inflatable sport boats. Achilles SG boats offer a roomy, square bow configuration which provides room for extra gear, and an aluminum and fiberglass floor system which delivers superior rigidity and durability. Achilles SG Sport boats bring performance and practicality together for better diving, fishing, or all-around sport boating pleasure. They are also perennial rescue and emergency boat favorites of fire departments, first responders and others around the world.

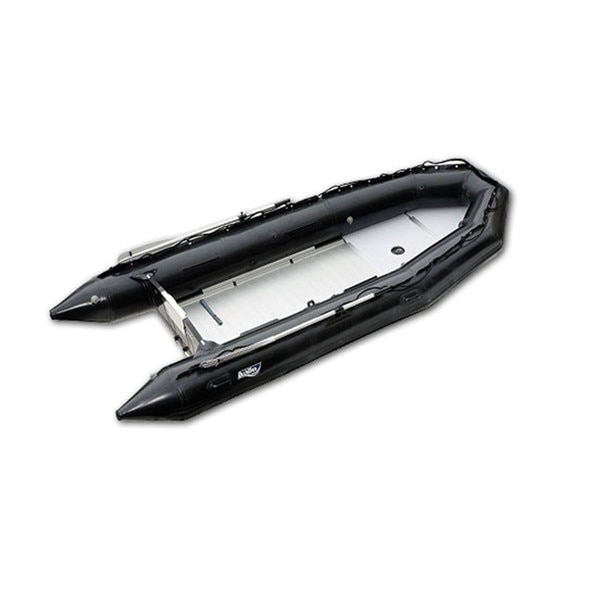

The newest addition to the SG Sport Utility series is the SG-140SV. This new model shares most of the same standard features and specifications as the traditional SG-140 model, but incorporates intercommunicating valves and over-pressure relief valves in all the main air tube chambers. These additions give the end user the ability to inflate the entire boat (except for the keel) from a single inflation point using an SCBA or SCUBA compressed air bottle or tank. It also allows for each chamber to be isolated in the event of damage to one of the chambers. This new inflation system is completely internal so there are no external hoses or hardware to get in the way. Although this is Achilles' first offering in the SG-SV series, they anticipate additional features and sizes to be added in the future. Currently available in Black only.
These "top-of-the-line" models continue to set the standard for inflatable sport boats. Achilles SG boats offer a roomy, square bow configuration which provides room for extra gear, and an aluminum and fiberglass floor system which delivers superior rigidity and durability. Achilles SG Sport boats bring performance and practicality together for better diving, fishing, or all-around sport boating pleasure. They are also perennial rescue and emergency boat favorites of fire departments, first responders and others around the world.
The newest addition to the SG Sport Utility series is the SG-140SV. This new model shares most of the same standard features and specifications as the traditional SG-140 model, but incorporates intercommunicating valves and over-pressure relief valves in all the main air tube chambers. These additions give the end user the ability to inflate the entire boat (except for the keel) from a single inflation point using an SCBA or SCUBA compressed air bottle or tank. It also allows for each chamber to be isolated in the event of damage to one of the chambers. This new inflation system is completely internal so there are no external hoses or hardware to get in the way. Although this is Achilles' first offering in the SG-SV series, they anticipate additional features and sizes to be added in the future. Currently available in Black only.
Specifications
SG Standard Features include:- Achilles CSM reinforced fabric
- Four-layer seam construction
- Air keel
- Aluminum and fiberglass floorboards with aluminum stringer system
- Fiberglass encased transom with protective motor clamp plate
- Fuel tank tie-downs
- Two bailer valves
- Full-length teardrop rubbing strake
- Fold-down locking oar system with two-piece breakdown aluminum oars and oar holders (except SG-156)
- Bow carry handle
- Lift and carry handles
- Towing bridle D-rings
- Helmsman grip
- Full-length splash guard with lifelines
- Removable wood seat (except SG-156)
- Extra seat attachment patches
- Large, high-volume foot pump
- Double carry bag system
- Maintenance kit
SG-124
- Color - Red
- Length - 12'4" (375 cm)
- Inside Length - 8’11" (272 cm)
- Beam - 5’3” (161 cm)
- Inside Beam - 2’6” (75 cm)
- Tube Diameter - 17" (43 cm)
- Weight - 175 lbs. (79.5 kg)
- Load Capacity - 1460 lbs. (660 kg)
- Person Capacity - 5
- Recommended H.P. - 20 (6-35) standard
- Maximum H.P. - 35 standard
- Air Chambers - 4 & keel
- Maximum Motor Weight: 176 lb.
SG-140
- Color - Red
- Length - 14'0" (425 cm)
- Inside Length - 10'0" (305 cm)
- Beam - 5’9” (175 cm)
- Inside Beam - 2’9” (85 cm)
- Tube Diameter -18" (45 cm)
- Weight - 226 lbs. (102.5 kg)
- Load Capacity - 1940 lbs. (880 kg)
- Person Capacity - 6
- Recommended H.P. - 30 (10-50) long
- Maximum H.P. - 50 long
- Air Chambers - 4 & keel
- Maximum Motor Weight: 243 lb.
SG-140SV
- Color - Black
- Length - 14'0" (425 cm)
- Inside Length - 10'0" (305 cm)
- Beam - 5’9” (175 cm)
- Inside Beam - 2’9” (85 cm)
- Tube Diameter - 18" (45 cm)
- Weight - 226 lbs. (102.5 kg)
- Load Capacity - 1940 lbs. (880 kg)
- Person Capacity - 6
- Recommended H.P. - 30 (9.9-50) long
- Maximum H.P. - 50 long
- Air Chambers - 4 & keel
- Maximum Motor Weight: 243 lb.
SG-156
- Color - Red
- Length - 15'6" (473 cm)
- Inside Length - 10'11" (333 cm)
- Beam - 6’3” (190 cm)
- Inside Beam - 2’11" (90 cm)
- Tube Diameter - 20" (50 cm)
- Weight - 272 lbs. (123.5 kg)
- Load Capacity - 2800 lbs. (1270 kg)
- Person Capacity - 8
- Recommended H.P. - 35 (9.9-55) long
- Maximum H.P. - 55 long
- Air Chambers - 5 & keel
- Maximum Motor Weight: 265 lb.
