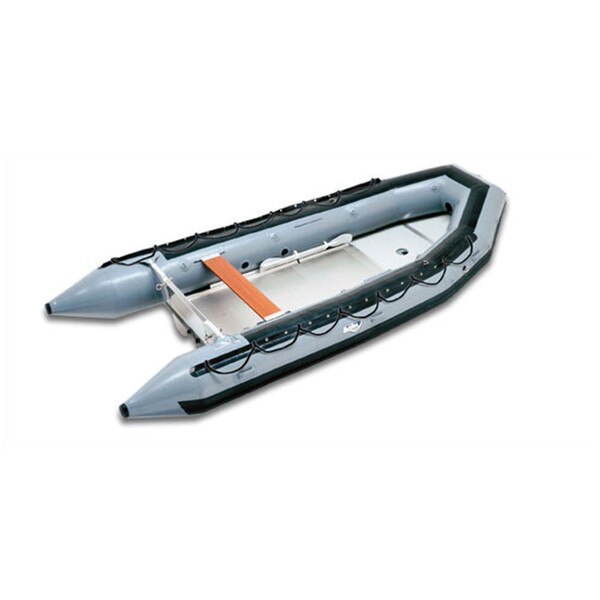

Achilles SU Sport Utility Series Inflatable Boats
Details
Achilles SU Sport Utility Series Inflatable Boats
Built tough to work hard for rugged private and commercial use. SU boats are made with an additional heavy-duty layer of 840-denier nylon Achilles CSM fabric in a two-ply technique which results in a fabric even stronger than a single base fabric of equal thickness. A number of commercial grade features such as recessed valves and a full-length, protective wear patch combine to make these boats the right choice for the toughest marine uses.
Built tough to work hard for rugged private and commercial use. SU boats are made with an additional heavy-duty layer of 840-denier nylon Achilles CSM fabric in a two-ply technique which results in a fabric even stronger than a single base fabric of equal thickness. A number of commercial grade features such as recessed valves and a full-length, protective wear patch combine to make these boats the right choice for the toughest marine uses.
Specifications
SU Standard Features include:- Achilles CSM reinforced fabric
- Four-layer seam construction
- Extra durable double layer (840 denier each) nylon core fabric
- Air keel
- Aluminum and fiberglass floorboards and aluminum stringer system Fiberglass encased transom with aluminum plate and motor pad
- Fuel tank tie-downs
- Heavy-duty bailer sleeve and two bailer valves
- Extra-wide, heavy-duty full-length teardrop rubbing strak
- Tie-down straps for paddles
- Bow handle
- Towing bridle D-rings
- Lift and carry handles
- Splash guard with life lines
- Heavy-duty reinforced cargo wear patch all around
- Extra tie-down D-rings
- Heavy-duty recessed valves
- Heavy-duty lifting points (hull and transom)
- Two high-volume, large foot pumps
- Maintenance kit
- SU Optional Features:
- Wood seat & paddles. Double layer (840 denier each) nylon core fabric; reinforced with Achilles CSM Fabric and Chloroprene.
SU-14
- Color - Gray, Black or Orange
- Length - 14'0" (425 cm)
- Inside Length - 9’4” (284 cm)
- Beam - 5’10" (178 cm)
- Inside Beam - 2’8” (82 cm)
- Tube Diameter - 19" (48 cm)
- Weight - 280 lbs. (127 kg)
- Load Capacity - 2230 lbs. (1010 kg)
- Person Capacity - 6
- Recommended H.P. - 35 (9.9-55) long
- Maximum H.P. - 55 long
- Air Chambers - 4 & keel
- Maximum Motor Weight: 265 lb.
SU-16
- Color - Gray, Black or Orange
- Length - 16'0" (488 cm)
- Inside Length - 10'10" (330 cm)
- Beam - 6’9” (206 cm)
- Inside Beam - 3’3” (100 cm)
- Tube Diameter - 21" (53 cm)
- Weight - 371 lbs. (168.5 kg)
- Load Capacity - 3170 lbs. (1440 kg)
- Person Capacity - 9
- Recommended H.P. - 40 (20-75) long
- Maximum H.P. - 75 long
- Air Chambers - 5 & keel
- Maximum Motor Weight: 353 lb.
SU-18
- Color - Gray, Black or Orange
- Length - 18'0" (549 cm)
- Inside Length - 12'0" (366 cm)
- Beam - 7’7” (230 cm)
- Inside Beam - 3’7” (110 cm)
- Tube Diameter - 24" (60 cm)
- Weight - 433 lbs. (196 kg)
- Load Capacity - 4630 lbs. (2100 kg)
- Person Capacity - 11R
- Recommended H.P. - 50 (25-90) long
- Maximum H.P. - 90 long
- Air Chambers - 5 & keel
- Maximum Motor Weight: 375 lb.
