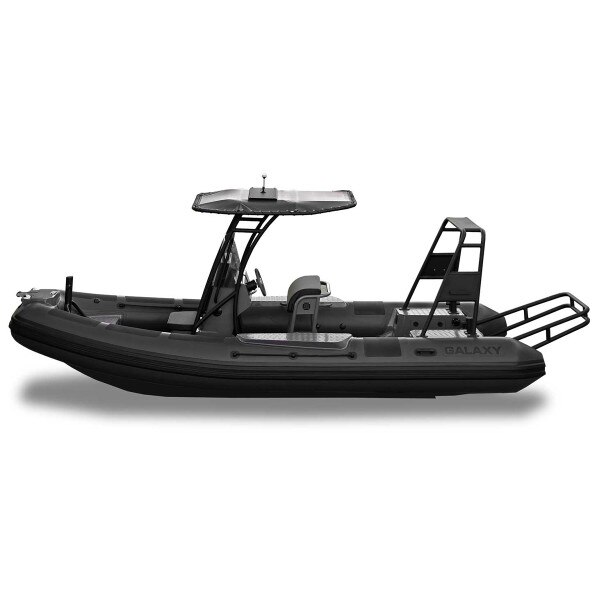

Gala Marine Galaxy Pilot P6

SKU GMI-Pilot-P6
(0) No Reviews yet
$46,842.00

Details

Gala Marine Galaxy Pilot P6

GALAXY – Pilot P6 and P7 models are our most popular and best selling models for professional use.

Applications for these boats include:

  • Rescue boats for Fire Departments and Rescue
  • Law enforcement boat for inland and coastal waters, and
  • General purpose work or commercial use boat


Key Features:

  • Impressive free deck space, allowing one person safely laying down along the deck for rescue and paramedics,
  • A large number of different consoles, seats and boat equipment to customize the cockpit arrangement and match your needs exactly,
  • Outstanding service with 3D CAD modelling for each single customer to visualize the boat you need with all features and equipment,
  • High level of naval engineering and European production quality with highly optimized weight and performance
  • Very short lead time from the project to finally delivered boat.


Standard Equipment:

  • [1] x 6122 - Aluminum hull for P6, coated
  • [standard] Antiskid deck
  • [standard] Set of foot pump, 2 paddles and repair/service kit
  • [1] x 6466 - PVC inflatable tube with rubrail, protection pads, lifeline, handles for P6
  • [1] x 5214 - Steering console C-06P with front seat for P6, P7
  • [1] x 5279 - Driver's bolster seat S-09 for P6, P7, P8, T7, T8
  • [1] x 5241 - Steering wheel GALAXY BLACK
  • [1] x 5239 - Hydraulic steering system (up to 300HP)
  • [1] x 4013 - Electric power package No15 for P6, P7
  • [1] x 4108 - Built-in fuel system with 106 lit fuel tank and sender for P6
  • [1] x 5009 - Bow step plate No4P for P6, P7, fiberglass (w/o soft back)
  • [1] x 5114 - T-top №2P for P6, P7
  • [1] x 5172 - Single engine guard frame No3 for P6, P7
  • [1] x 5181 - Bow towing bollard No10 for P6, P7
  • [1] x 5134 - Two rear towing bollards No6 for P6, P7
  • [1] x 5166 - Two side step panels №1, aluminium with antiskid decking and handrails for P6, P7
  • [1] x 5116 - Towing arch No5 for P6, P7, wide
  • [1] x 4120 - Upgrade to EPA compliant fuel system


IMPORTANT! Please contact us for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.

Custom color options available upon request.

Specifications

  • Length Overall: 580 cm / 19’0″
  • Length Inside: 480 cm / 15’9″
  • Width Overall: 250 cm / 8’2″
  • Width Inside: 130 cm / 4’3″
  • Tube Diameter: 60 cm / 24″
  • Bare Boat Weight: 580 kg / 1276 lbs
  • Loading Capacity: 1400 kg / 3080 lbs
  • Passenger Capacity: 10
  • Number of Chambers: 5
  • Engine Recommended: 150 HP
  • Engine MAX: 175 HP
  • Engine Weight MAX: 130 kg / 286 lbs
  • Engine Shaft Length: 20″ (long)
  • Aluminum Hull Thickness: 4 mm / 5/32″
  • Boat Design Category: C

IMPORTANT! Please contact us for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.

Custom color options available upon request.
